03 0402 00 SLEWING BEARING
Bearing Designations : 03 0402 00 slewing bearing
We are a professional manufacturer of slewing bearing 03 0402 00 rather than sales company of slewing bearing 03 0402 00. We not only provide high-quality products, but also provide customers with the most extensive pre-sales and after-sales services, as well as professional technical support.
Contructure Type: Four-contact Ball
Gear Type: Ungeared
Closure Type: Double Seal
Inner Diameter : 335 mm
Outer Diameter : 475mm
Total Height : 45 mm
Weight : 30 kg

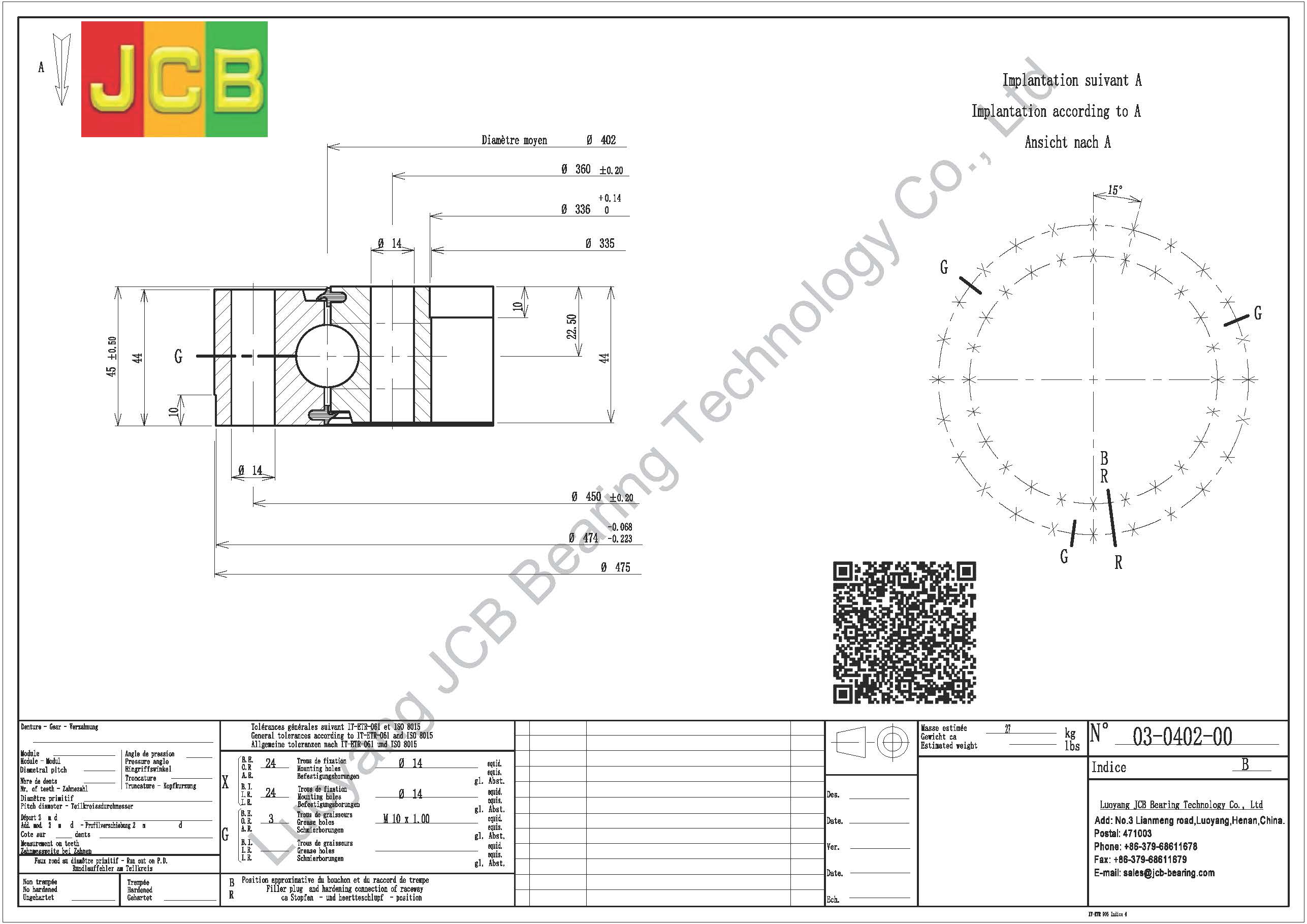

03 0402 00 SLEWING BEARING DRAWING
Technical Specification
| Bearing Designations | 03 0402 00 |
| Row No. | single row |
| Standard | yes |
| Weight | 30kg |
| Structure | ball |
| Bearing Material | 50Mn,42CrMo |
| Ball Material | GCr15 |
| Transport | yes |
| Package | wooden case |
| Service | yes |
| Application | – |
| Quality Control | ISO 9001 |
| HS Code | 8482109000 |
| Inner Diameter | 335mm |
| Outer Diameter | 475mm |
| Total Height | 45mm |
| Boundary Dimension | 335mm*475mm*45mm |
| Number of Tooth | – |
| Precision Class | p0 p6 p5 |
| Seals Type | yes |
| Seal Material | Nitrile.Rubber |
| Gear Options | Ungeared |
| Shipping Ways | by air/ by sea/ by express |
| Country origin | China |
How to ensure quality of slewing bearing 03 0402 00
–Advanced design
–Advanced equipment
–Reliable raw materials
–Perfect management system
–Perfect testing method
