02 0520 00 slewing bearing
Bearing Designations : 02 0520 00 slewing bearing
We are a professional manufacturer of slewing bearing 02 0520 00 rather than sales company of slewing bearing 02 0520 00. We not only provide high-quality products, but also provide customers with the most extensive pre-sales and after-sales services, as well as professional technical support.
Contructure Type: Four-contact Ball
Gear Type: Internal Gear
Closure Type: Double Seal
Inner Diameter : 457 mm
Outer Diameter : 665 mm
Total Height : 60 mm
Weight : 61 kg

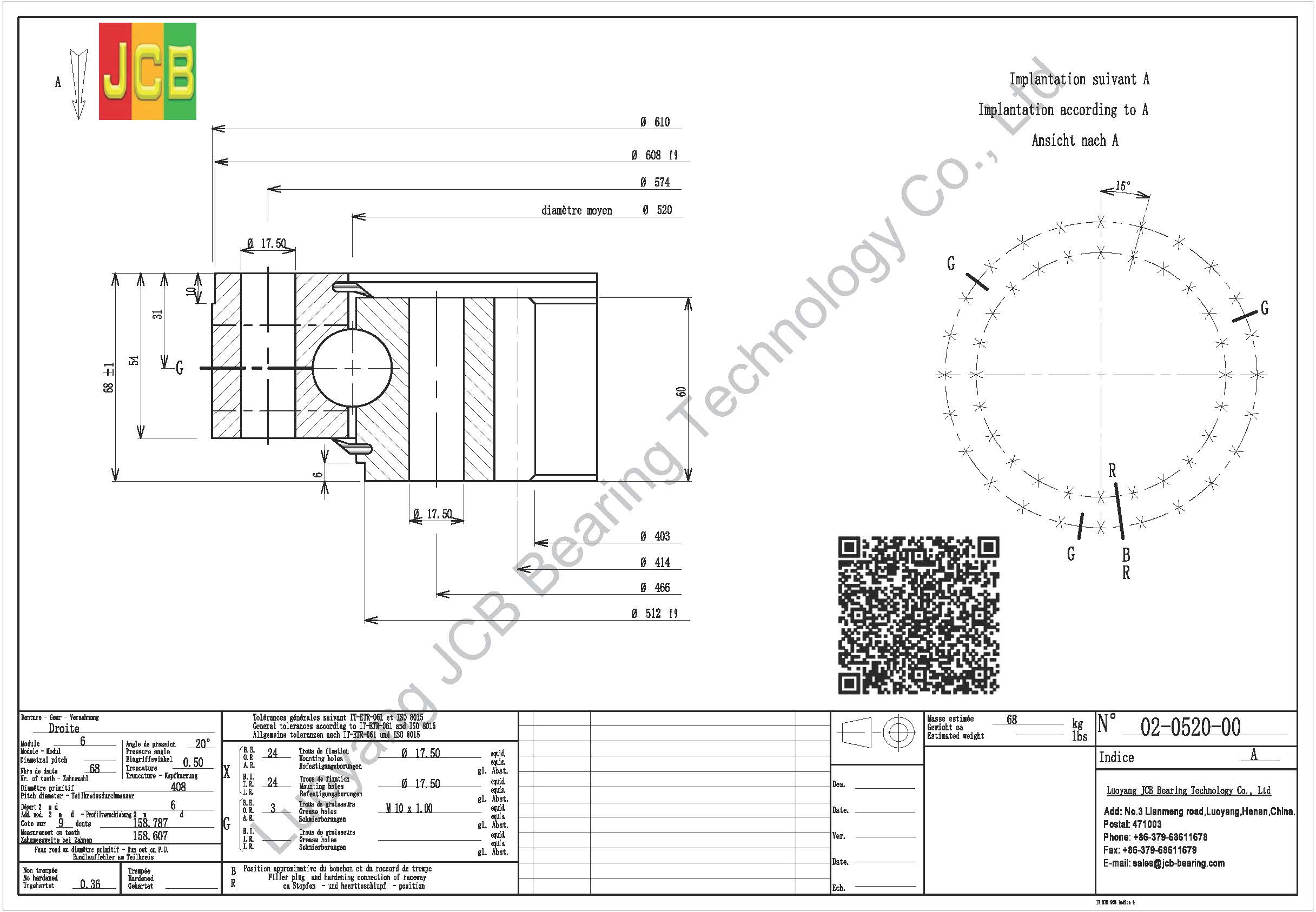

02 0520 00 SLEWING BEARING DRAWING
Technical Specification
| Bearing Designations | 02 0520 00 |
| Row No. | single row |
| Standard | yes |
| Weight | 61kg |
| Structure | ball |
| Bearing Material | 50Mn,42CrMo |
| Ball Material | GCr15 |
| Transport | yes |
| Package | wooden case |
| Service | yes |
| Application | – |
| Quality Control | ISO 9001 |
| HS Code | 8482800000 |
| Inner Diameter | 457mm |
| Outer Diameter | 665mm |
| Total Height | 60mm |
| Boundary Dimension | 457mm*665mm*60mm |
| Number of Tooth | 68 |
| Precision Class | p0 p6 p5 |
| Seals Type | yes |
| Seal Material | Nitrile.Rubber |
| Gear Options | Internal Gear |
| Shipping Ways | by air/ by sea/ by express |
| Country origin | China |
Related Products
| 07 0489 11 | 02 0422 00 |
| 07 0380 01 | 02 0308 01 |
| 02 0245 00 | 07 0573 00 |
| 02 0626 01 | 07 0673 00 |
| 02 0720 02 | 07 0770 00 |
02 0520 00 Applications
Antennas and Radar
Equipment
Aviation and Aerospace Units
Bogie Bearings for Vehicles
Areal Hydraulic Platforms
Communication Systems
Steelmill Equipment
Excavators
Tower Cranes
Harbour and Shipyard Cranes
Machine Tools
Offshore Technology
Packaging and Filling
Rail Vehicles
Ship Deck Cranes
Mechanical Engineering
Stackers and Reclaimers
Telescopes
Water Treatment Equipment
Tunnelling Machines
Mobile Cranes
How to ensure quality of slewing bearing
–Advanced design
–Advanced equipment
–Reliable raw materials
–Perfect management system
–Perfect testing method
