33 0541 01 slewing bearing
Bearing Designations : 33 0541 01 slewing bearing
We are a professional manufacturer of slewing bearing 33 0541 01 rather than sales company of slewing bearing 33 0541 01. We not only provide high-quality products, but also provide customers with the most extensive pre-sales and after-sales services, as well as professional technical support.
Contructure Type: Four-contact Ball
Gear Type: Ungeared
Closure Type: Double Seal
Inner Diameter : 472 mm
Outer Diameter : 616 mm
Total Height : 38 mm
Weight : 46 kg

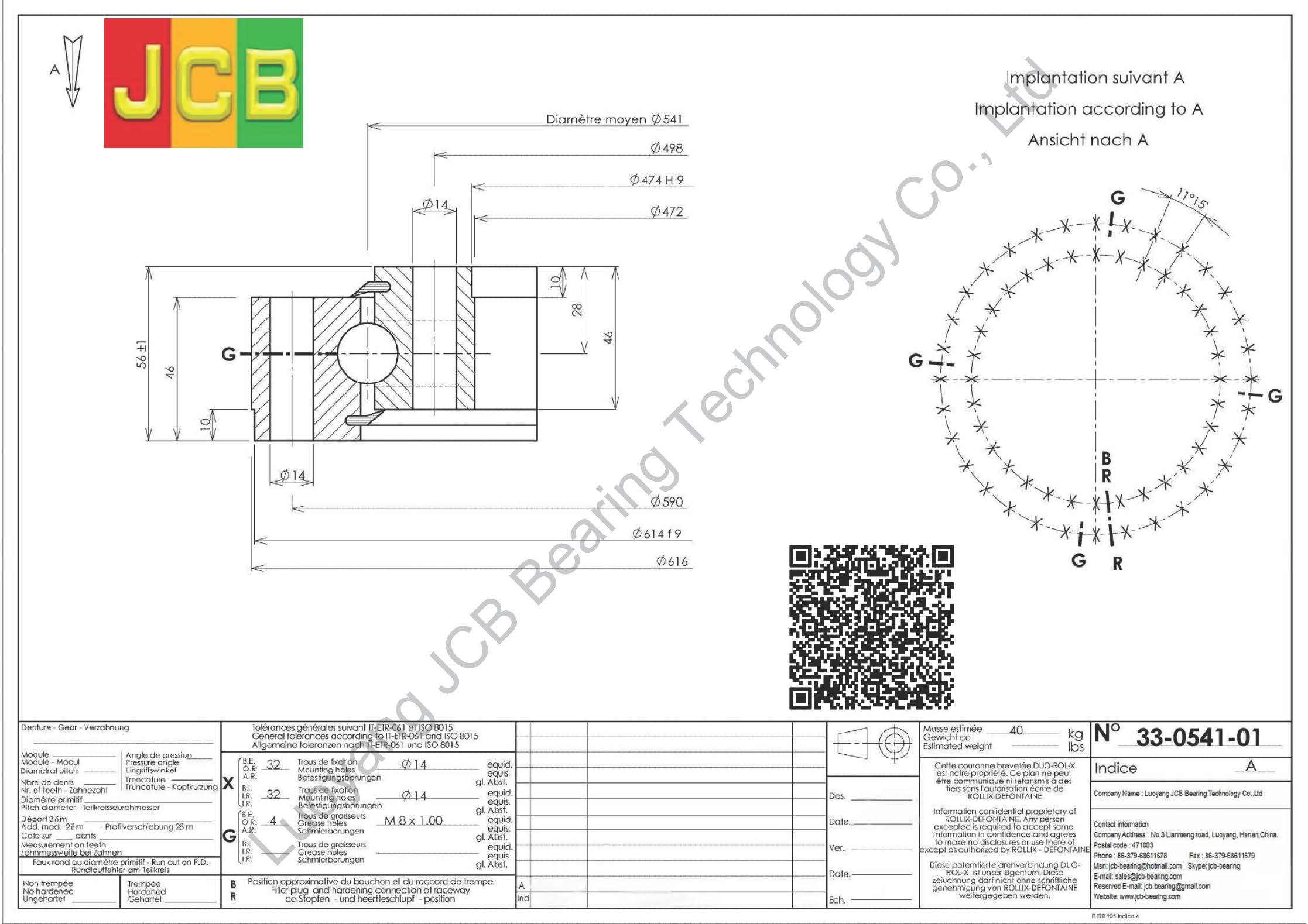

33 0541 01 SLEWING BEARING DRAWING
Technical Specification
| Bearing Designations | 33 0541 01 |
| Row No. | single row |
| Standard | yes |
| Weight | 46kg |
| Structure | ball |
| Bearing Material | 50Mn,42CrMo |
| Ball Material | GCr15 |
| Transport | yes |
| Package | wooden case |
| Service | yes |
| Application | – |
| Quality Control | ISO 9001 |
| HS Code | 8482109000 |
| Inner Diameter | 472mm |
| Outer Diameter | 616mm |
| Total Height | 38mm |
| Boundary Dimension | 572mm*616m*38mm |
| Number of Tooth | – |
| Precision Class | p0 p6 p5 |
| Seals Type | yes |
| Seal Material | Nitrile.Rubber |
| Gear Options | Ungeared |
| Shipping Ways | by air/ by sea/ by express |
| Country origin | China |
Related Products
| 33 0411 01 | 33 0641 01 |
| 33 0741 01 | 33 0841 01 |
| 33 0941 01 | 33 1091 01 |
| 32 1091 01 | 32 0941 01 |
| 32 0841 01 | 32 0741 01 |
33 0541 01 Applications
Antennas and Radar
Equipment
Aviation and Aerospace Units
Bogie Bearings for Vehicles
Areal Hydraulic Platforms
Communication Systems
Steelmill Equipment
Excavators
Tower Cranes
Harbour and Shipyard Cranes
Machine Tools
Offshore Technology
Packaging and Filling
Rail Vehicles
Ship Deck Cranes
Mechanical Engineering
Stackers and Reclaimers
Telescopes
Water Treatment Equipment
Tunnelling Machines
Mobile Cranes
