21 0741 01 slewing bearing
Bearing Designations : 21 0741 01 slewing bearing
We are a professional manufacturer of slewing bearing 21 0741 01 rather than sales company of slewing bearing 21 0741 01. We not only provide high-quality products, but also provide customers with the most extensive pre-sales and after-sales services, as well as professional technical support.
Contructure Type: Four-contact Ball
Gear Type: External Gear
Closure Type: Double Seal
Inner Diameter : 634 mm
Outer Diameter : 840mm
Total Height : 56 mm
Weight : 60kg

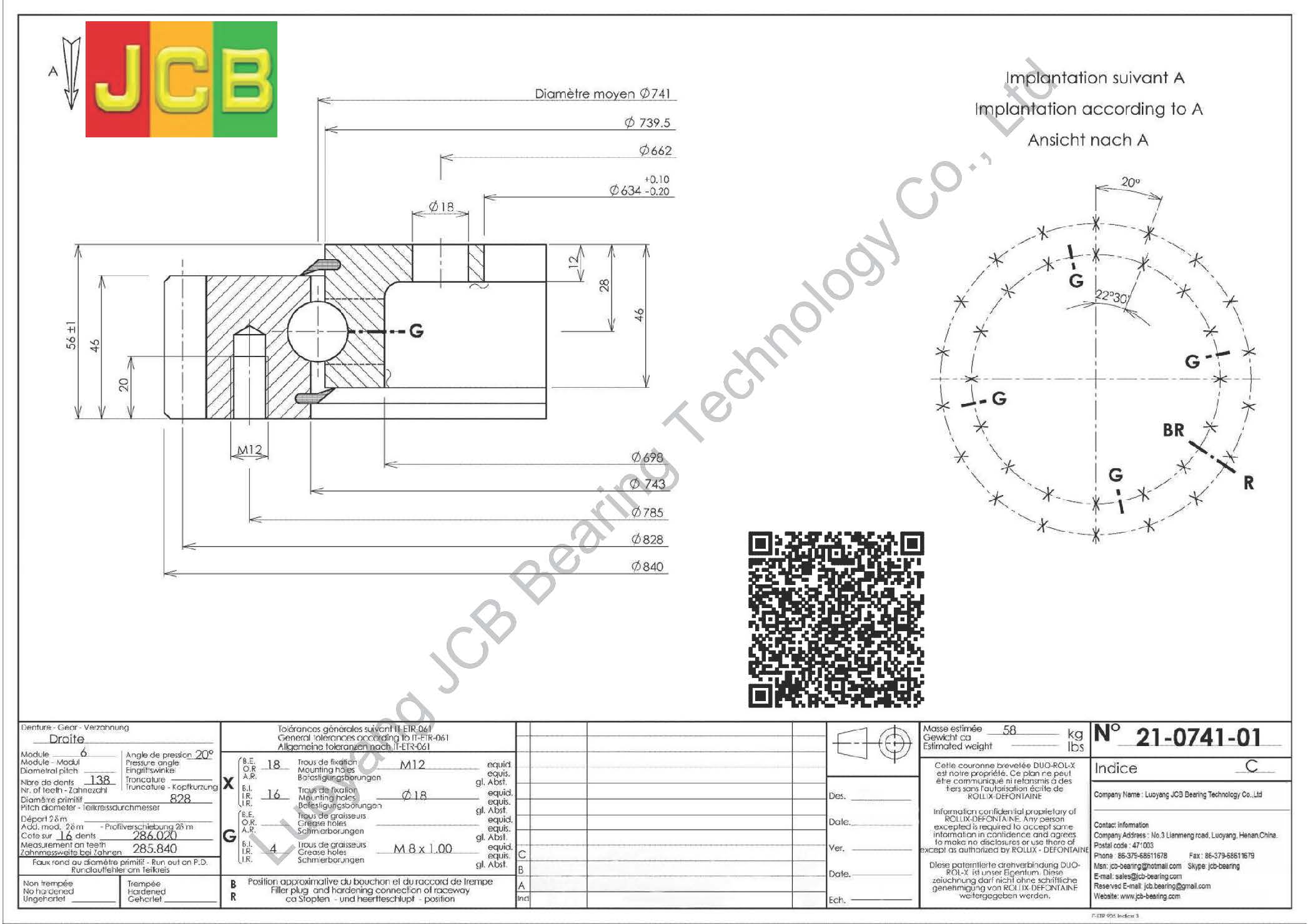

21 0741 01 SLEWING BEARING DRAWING
Technical Specification
| Bearing Designations | 21 0741 01 | HS Code | 8482109000 |
| Row No. | single row | Inner Diameter | 634mm |
| Standard | yes | Outer Diameter | 840mm |
| Weight | 60kg | Total Height | 56mm |
| Structure | ball | Boundary Dimension | 634mm*840m*56mm |
| Bearing Material | 50Mn,42CrMo | Number of Tooth | 138 |
| Ball Material | GCr15 | Precision Class | p0 p6 p5 |
| Transport | yes | Seals Type | yes |
| Package | wooden case | Seal Material | Nitrile.Rubber |
| Service | yes | Gear Options | External Gear |
| Application | – | Shipping Ways | by air/ by sea/ by express |
| Quality Control | ISO 9001 | Country origin | China |
Related Products
| 21 0641 01 | 21 0541 01 |
| 21 0411 01 | 22 0411 01 |
| 22 0541 01 | 22 0641 01 |
| 22 0841 01 | 22 1091 01 |
21 0741 01 Applications
Antennas and Radar
Equipment
Aviation and Aerospace Units
Bogie Bearings for Vehicles
Areal Hydraulic Platforms
Communication Systems
Steelmill Equipment
Excavators
Tower Cranes
Harbour and Shipyard Cranes
Machine Tools
Offshore Technology
Packaging and Filling
Rail Vehicles
Ship Deck Cranes
Mechanical Engineering
Stackers and Reclaimers
Telescopes
Water Treatment Equipment
Tunnelling Machines
Mobile Cranes
How to ensure quality of slewing bearing
–Advanced design
–Advanced equipment
–Reliable raw materials
–Perfect management system
–Perfect testing method
