08 0980 06 slewing bearing
Bearing Designations : 08 0980 06 slewing bearing
We are a professional manufacturer of slewing bearing 08 0980 06 rather than sales company of slewing bearing 08 0980 06. We not only provide high-quality products, but also provide customers with the most extensive pre-sales and after-sales services, as well as professional technical support.
Contructure Type: Four-contact Ball
Gear Type: Ungeared
Closure Type: Double Seal
Inner Diameter : 869 mm
Outer Diameter : 1144 mm
Total Height : 100 mm
Weight : 248 kg

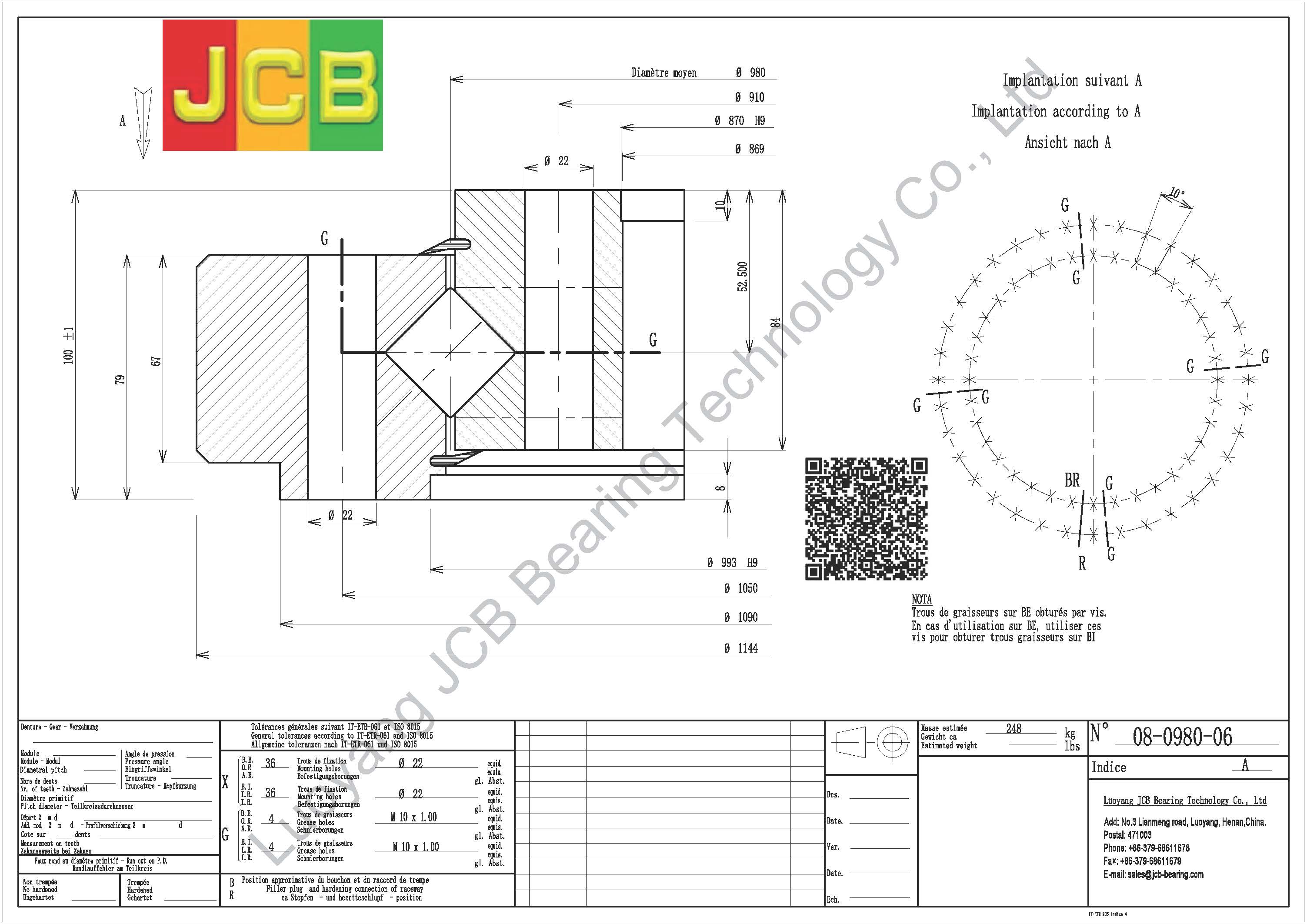

08 0980 06 SLEWING BEARING DRAWING
Technical Specification
| Bearing Designations | 08 0980 06 | HS Code | 8482109000 |
| Row No. | single row | Inner Diameter | 869mm |
| Standard | yes | Outer Diameter | 1144mm |
| Weight | 248kg | Total Height | 100mm |
| Structure | ball | Boundary Dimension | 869mm*1144mm*100mm |
| Bearing Material | 50Mn,42CrMo | Number of Tooth | – |
| Ball Material | GCr15 | Precision Class | p0 p6 p5 |
| Transport | yes | Seals Type | yes |
| Package | wooden case | Seal Material | Nitrile.Rubber |
| Service | yes | Gear Options | Ungeared |
| Application | Shipping Ways | by air/ by sea/ by express | |
| Quality Control | ISO 9001 | Country origin | China |
How to ensure quality of slewing bearing
–Advanced design
–Advanced equipment
–Reliable raw materials
–Perfect management system
–Perfect testing method
