08 0220 05 slewing bearing
Bearing Designations : 08 0220 05 slewing bearing
We are a professional manufacturer of slewing bearing 08 0220 05 rather than sales company of slewing bearing 08 0220 05. We not only provide high-quality products, but also provide customers with the most extensive pre-sales and after-sales services, as well as professional technical support.
Contructure Type: Four-contact Ball
Gear Type: Ungeared
Closure Type: Double Seal
Inner Diameter : 140 mm
Outer Diameter : 300 mm
Total Height : 52 mm
Weight : 16 kg

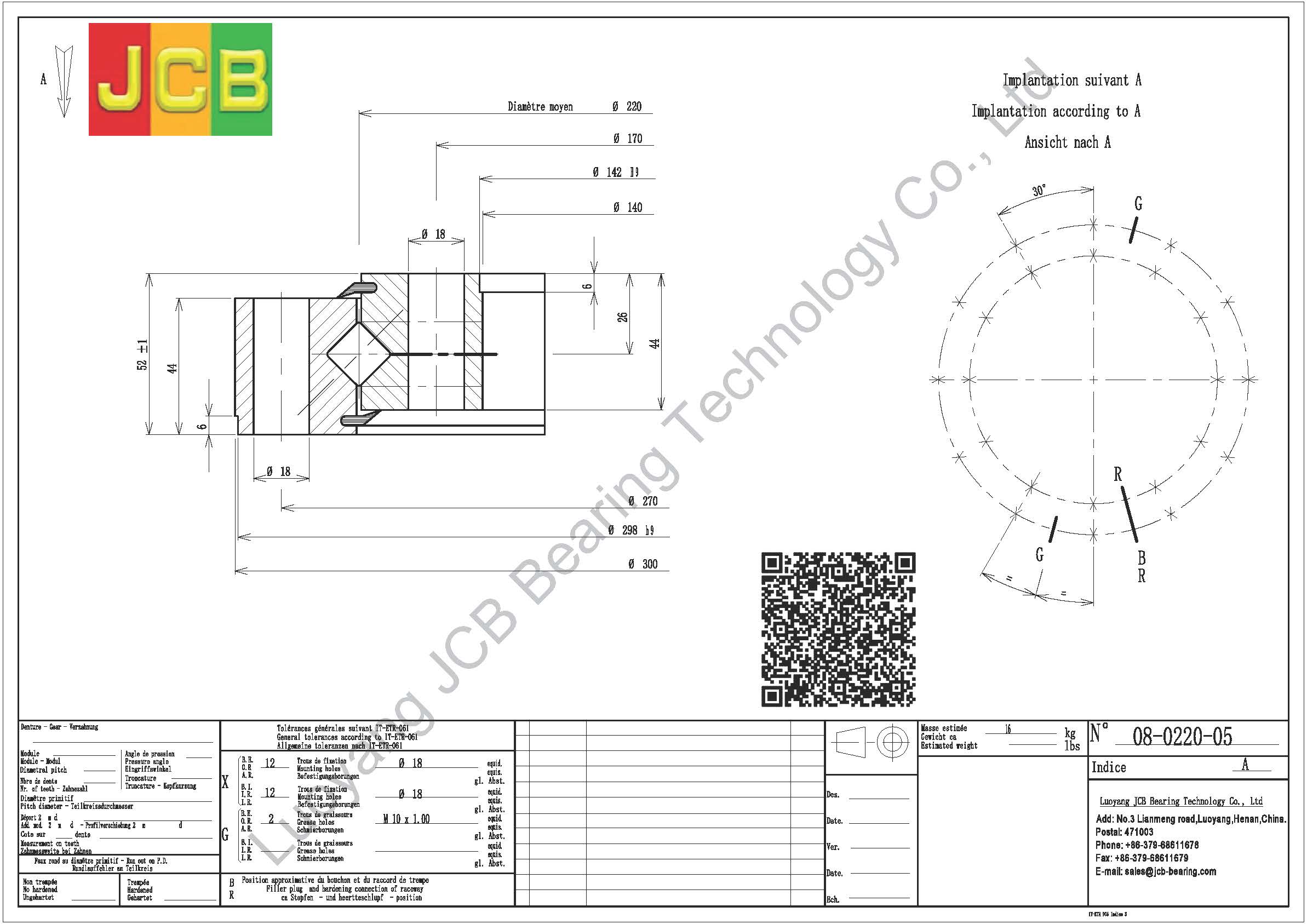

08 0220 05 SLEWING BEARING DRAWING
Technical Specification
| Bearing Designations | 08 0220 05 |
| Row No. | single row |
| Standard | yes |
| Weight | 16kg |
| Structure | ball |
| Bearing Material | 50Mn,42CrMo |
| Ball Material | GCr15 |
| Transport | yes |
| Package | wooden case |
| Service | yes |
| Application | – |
| Quality Control | ISO 9001 |
| HS Code | 8482109000 |
| Inner Diameter | 140mm |
| Outer Diameter | 300mm |
| Total Height | 52mm |
| Boundary Dimension | 140mm*300mm*52mm |
| Number of Tooth | – |
| Precision Class | p0 p6 p5 |
| Seals Type | yes |
| Seal Material | Nitrile.Rubber |
| Gear Options | Ungeared |
| Shipping Ways | by air/ by sea/ by express |
| Country origin | China |
Related Products
| 03 0260 00 | 08 0270 04 |
| 08 0307 00 | 08 0340 04 |
| 03 0342 05 | 03 0360 00 |
| 08 0405 05 | 03 0402 00 |
| 08 0400 00 | 08 0475 08 |
08 0220 05 Applications
Antennas and Radar
Equipment
Aviation and Aerospace Units
Bogie Bearings for Vehicles
Areal Hydraulic Platforms
Communication Systems
Steelmill Equipment
Excavators
Tower Cranes
Harbour and Shipyard Cranes
Machine Tools
Offshore Technology
Packaging and Filling
Rail Vehicles
Ship Deck Cranes
Mechanical Engineering
Stackers and Reclaimers
Telescopes
Water Treatment Equipment
Tunnelling Machines
Mobile Cranes
How to ensure quality of slewing bearing
–Advanced design
–Advanced equipment
–Reliable raw materials
–Perfect management system
–Perfect testing method
