01 3031 00 slewing bearing
Bearing Designations : 01 3031 00 slewing bearing
We are a professional manufacturer of slewing bearing 01 3031 00 rather than sales company of slewing bearing 01 3031 00. We not only provide high-quality products, but also provide customers with the most extensive pre-sales and after-sales services, as well as professional technical support.
Contructure Type: Four-contact Ball
Gear Type: External Gear
Closure Type: Double Seal
Inner Diameter : 2914mm
Outer Diameter : 3200 mm
Total Height : 90 mm
Weight : 716 kg

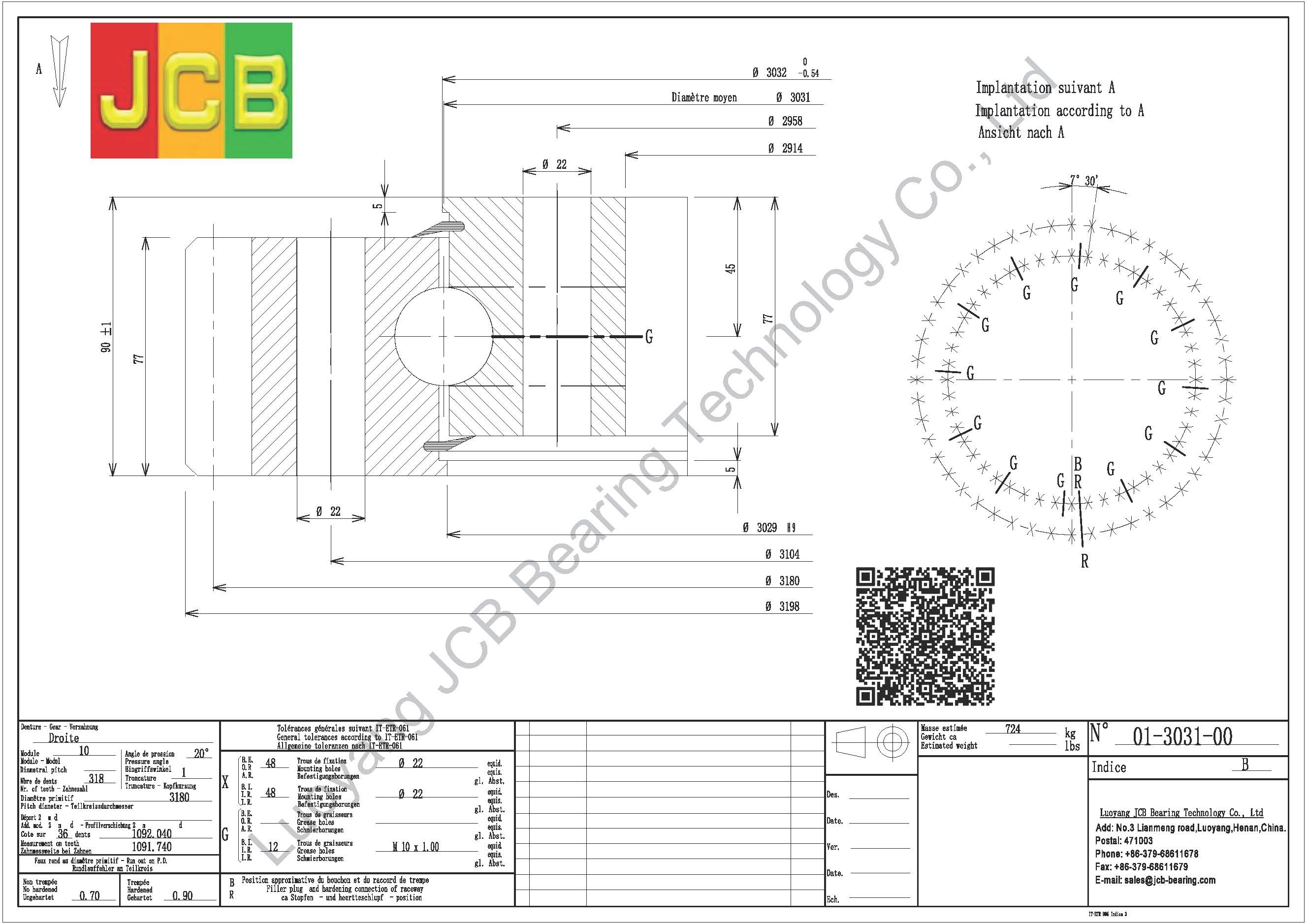

01 3031 00 SLEWING BEARING DRAWING
Technical Specification
| Bearing Designations | 01 3031 00 |
| Row No. | single row |
| Standard | yes |
| Weight | 716kg |
| Structure | ball |
| Bearing Material | 50Mn,42CrMo |
| Ball Material | GCr15 |
| Transport | yes |
| Package | wooden case |
| Service | yes |
| Application | – |
| Quality Control | ISO 9001 |
| HS Code | 8482800000 |
| Inner Diameter | 2914mm |
| Outer Diameter | 3200mm |
| Total Height | 90mm |
| Boundary Dimension | 2914mm*3200mm*90mm |
| Number of Tooth | 318 |
| Precision Class | p0 p6 p5 |
| Seals Type | yes |
| Seal Material | Nitrile.Rubber |
| Gear Options | External Gear |
| Shipping Ways | by air/ by sea/ by express |
| Country origin | China |
