01 2202 00 slewing bearing
Bearing Designations : 01 2202 00 slewing bearing
We are a professional manufacturer of slewing bearing 01 2202 00 rather than sales company of slewing bearing 01 2202 00. We not only provide high-quality products, but also provide customers with the most extensive pre-sales and after-sales services, as well as professional technical support.
Contructure Type: Four-contact Ball
Gear Type: External Gear
Closure Type: Double Seal
Inner Diameter : 2091 mm
Outer Diameter : 2342 mm
Total Height : 70 mm
Weight : 373 kg

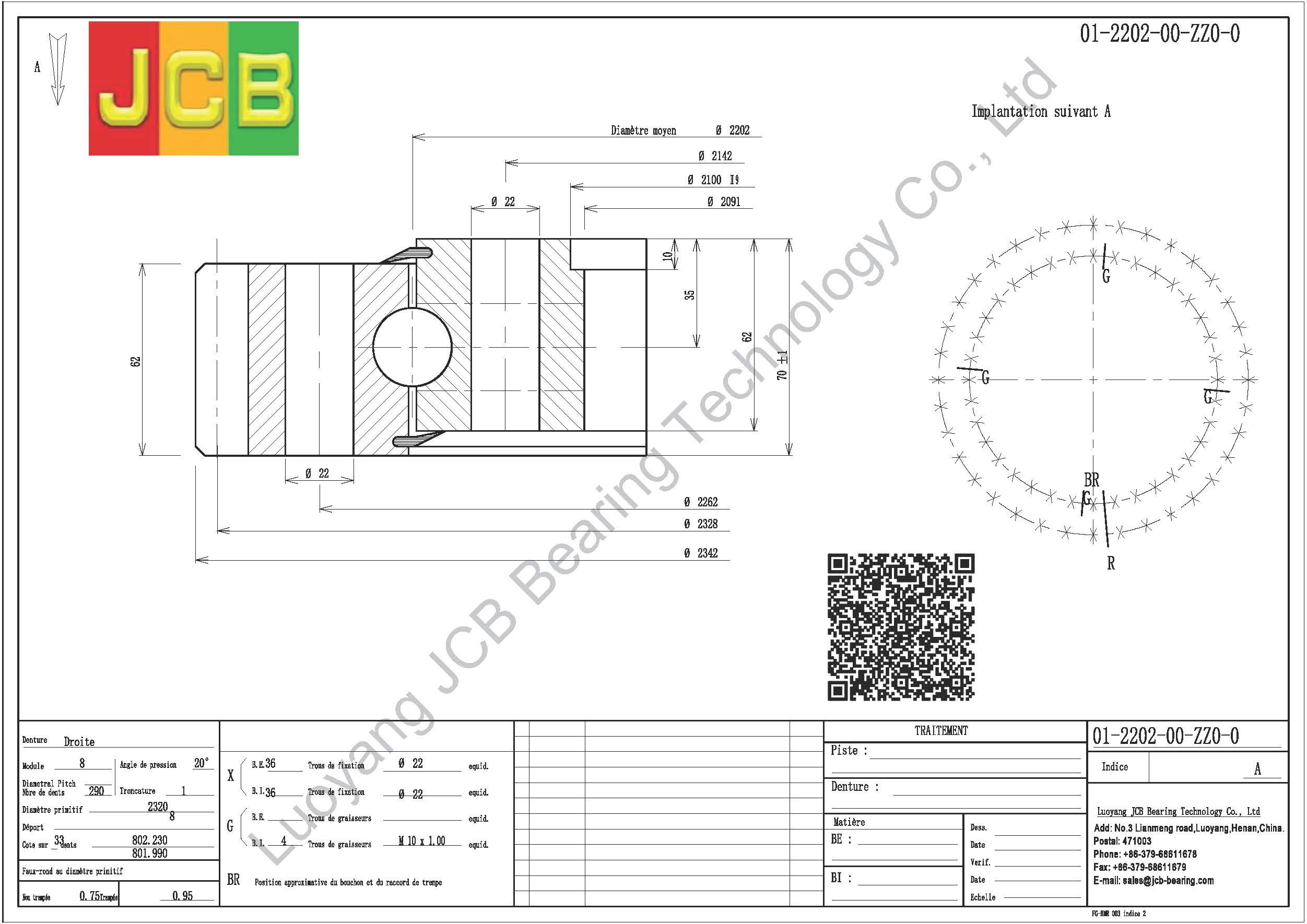

01 2202 00 SLEWING BEARING DRAWING
Technical Specification
| Bearing Designations | 01 2202 00 | HS Code | 8482800000 |
| Row No. | single row | Inner Diameter | 2091mm |
| Standard | yes | Outer Diameter | 2342mm |
| Weight | 373kg | Total Height | 70mm |
| Structure | ball | Boundary Dimension | 2091mm*2342mm*70mm |
| Bearing Material | 50Mn,42CrMo | Number of Tooth | 290 |
| Ball Material | GCr15 | Precision Class | p0 p6 p5 |
| Transport | yes | Seals Type | yes |
| Package | wooden case | Seal Material | Nitrile.Rubber |
| Service | yes | Gear Options | External Gear |
| Application | Shipping Ways | by air/ by sea/ by express | |
| Quality Control | ISO 9001 | Country origin | China |
How to ensure quality of slewing bearing
–Advanced design
–Advanced equipment
–Reliable raw materials
–Perfect management system
–Perfect testing method
About JCB bearing
Introduction:We are Luoyang JCB Bearing Technology Company, working on industry of slewing ring bearing designing and manufacturing more than 30 years, based on this we accumulate a lot of design experiences and slewing ring bearing application experiences
Company motto：We always believe that product quality is the life of enterprise, the enterprise without reliable product quality, that is meaning without social responsibility, it will be eliminated by the market.
Featured products: slewing bearing and slewing drive
Certificate: GB/T 19001-2016(ISO 9001:2015)
