01 1050 00 slewing bearing
Bearing Designations :01 1050 00 slewing bearing
We are a professional manufacturer of slewing bearing 01 1050 00 rather than sales company of slewing bearing 01 1050 00. We not only provide high-quality products, but also provide customers with the most extensive pre-sales and after-sales services, as well as professional technical support.
Contructure Type: Four-contact Ball
Gear Type: External Gear
Closure Type: Double Seal
Inner Diameter : 930 mm
Outer Diameter : 1218 mm
Total Height : 98 mm
Weight : 268 kg

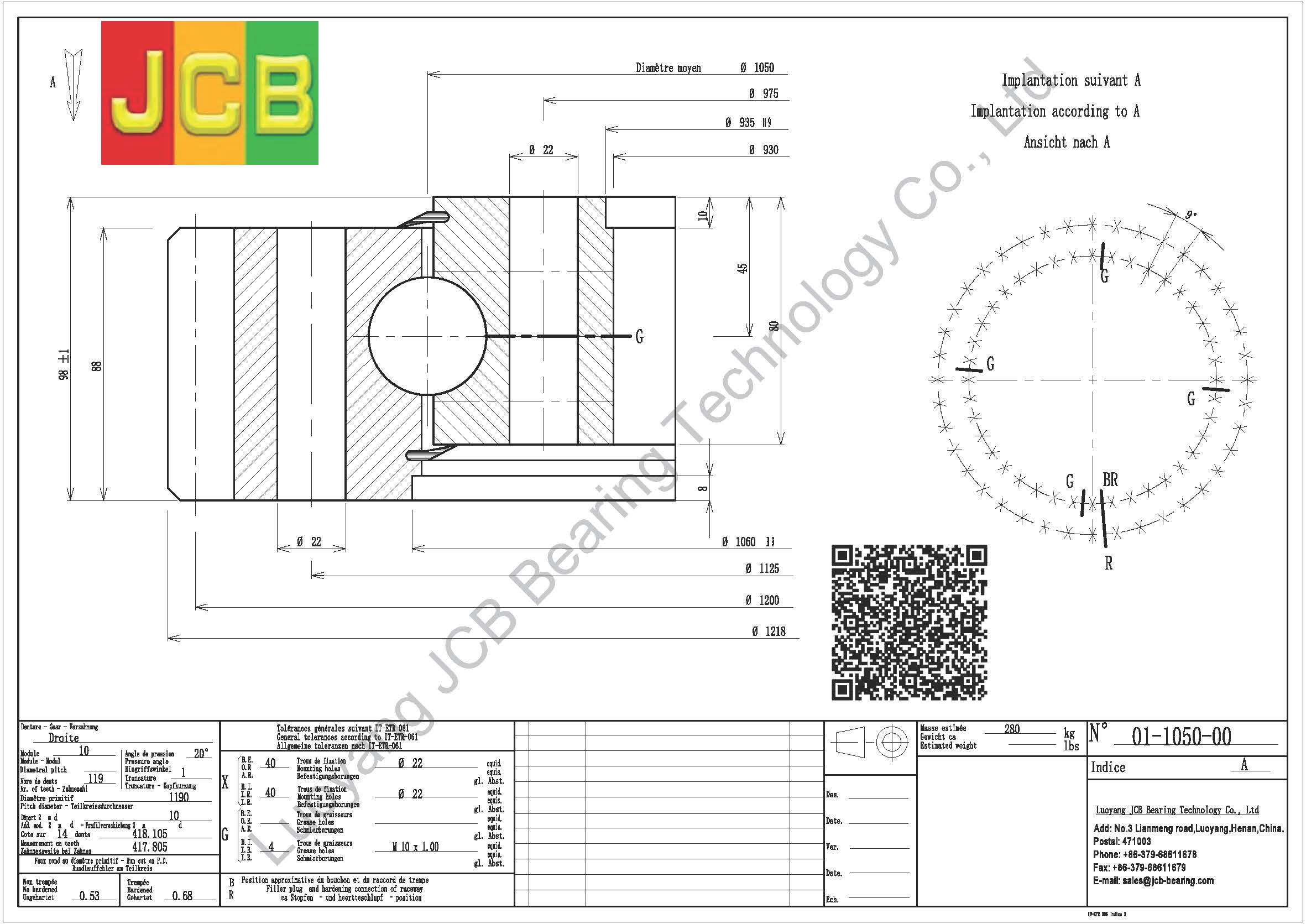

01 1050 00 SLEWING BEARING DRAWING
Technical Specification
| Bearing Designations | 01 1050 00 |
| Row No. | single row |
| Standard | yes |
| Weight | 268kg |
| Structure | ball |
| Bearing Material | 50Mn,42CrMo |
| Ball Material | GCr15 |
| Transport | yes |
| Package | wooden case |
| Service | yes |
| Application | – |
| Quality Control | ISO 9001 |
| HS Code | 8482800000 |
| Inner Diameter | 930mm |
| Outer Diameter | 1218mm |
| Total Height | 98mm |
| Boundary Dimension | 930mm*1218mm*98mm |
| Number of Tooth | 119 |
| Precision Class | p0 p6 p5 |
| Seals Type | yes |
| Seal Material | Nitrile.Rubber |
| Gear Options | External Gear |
| Shipping Ways | by air/ by sea/ by express |
| Country origin | China |
Related Products
| 06 1116 00 | 01 1410 00 |
| 01 1180 00 | 01 1595 00 |
| 01 1295 01 | 06 1595 04 |
| 06 1250 21 | 01 1712 00 |
| 06 1390 03 | 01 1845 02 |
01 1050 00 Applications
Antennas and Radar
Equipment
Aviation and Aerospace Units
Bogie Bearings for Vehicles
Areal Hydraulic Platforms
Communication Systems
Steelmill Equipment
Excavators
Tower Cranes
Harbour and Shipyard Cranes
Machine Tools
Offshore Technology
Packaging and Filling
Rail Vehicles
Ship Deck Cranes
Mechanical Engineering
Stackers and Reclaimers
Telescopes
Water Treatment Equipment
Tunnelling Machines
Mobile Cranes
