XSI 14 0544 N slewing bearing
Bearing Designations : XSI 14 0544 N slewing bearing
We are a professional manufacturer of slewing bearing XSI 14 0544 N rather than sales company of slewing bearing XSI 14 0544 N. We not only provide high-quality products, but also provide customers with the most extensive pre-sales and after-sales services, as well as professional technical support.
Contructure Type: Cross Roller
Gear Type: Internal Gear
Closure Type: Double Seal
Inner Diameter : 444 mm
Outer Diameter : 614 mm
Total Height : 56 mm
Weight : 43 kg

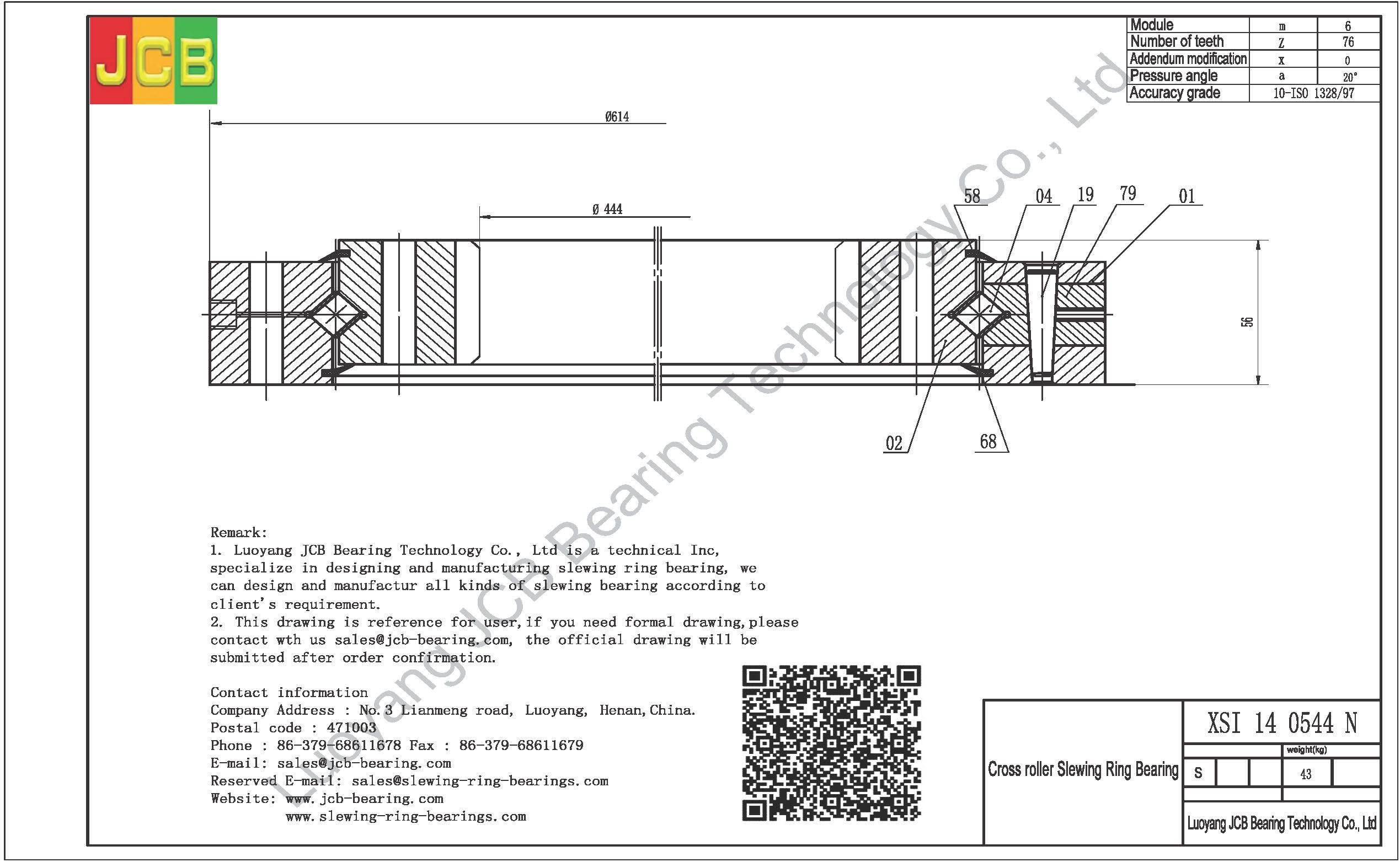

XSI 14 0544 N SLEWING BEARING DRAWING
Technical Specification
| Bearing Designations | XSI 14 0544 N | HS Code | 8482109000 |
| Row No. | single row | Inner Diameter | 444mm |
| Standard | yes | Outer Diameter | 614mm |
| Weight | 43kg | Total Height | 56mm |
| Structure | ball | Boundary Dimension | 444mm*614mm*56mm |
| Bearing Material | 50Mn,42CrMo | Number of Tooth | 76 |
| Ball Material | GCr15 | Precision Class | p0 p6 p5 |
| Transport | yes | Seals Type | yes |
| Package | wooden case | Seal Material | Nitrile.Rubber |
| Service | yes | Gear Options | Internal Gear |
| Application | Shipping Ways | by air/ by sea/ by express | |
| Quality Control | ISO 9001 | Country origin | China |
How to ensure quality of slewing bearing
–Advanced design
–Advanced equipment
–Reliable raw materials
–Perfect management system
–Perfect testing method
About JCB bearing
Introduction:We are Luoyang JCB Bearing Technology Company, working on industry of slewing ring bearing designing and manufacturing more than 30 years, based on this we accumulate a lot of design experiences and slewing ring bearing application experiences
Company motto：We always believe that product quality is the life of enterprise, the enterprise without reliable product quality, that is meaning without social responsibility, it will be eliminated by the market.
Featured products: slewing bearing and slewing drive
Certificate: GB/T 19001-2016(ISO 9001:2015)
