31-32 4000/2-07350 SLEWING BEARING
Bearing Designations : 31-32 4000/2-07350 slewing bearing
We are a professional manufacturer of slewing bearing 31-32 4000/2-07350 rather than sales company of slewing bearing 31-32 4000/2-07350. We not only provide high-quality products, but also provide customers with the most extensive pre-sales and after-sales services, as well as professional technical support.
Contructure Type: Triple-row Roller
Gear Type: External Gear
Closure Type: Double Seal
Inner Diameter : 3782mm
Outer Diameter : 4351.6 mm
Total Height : 181mm
Weight : 3752 kg

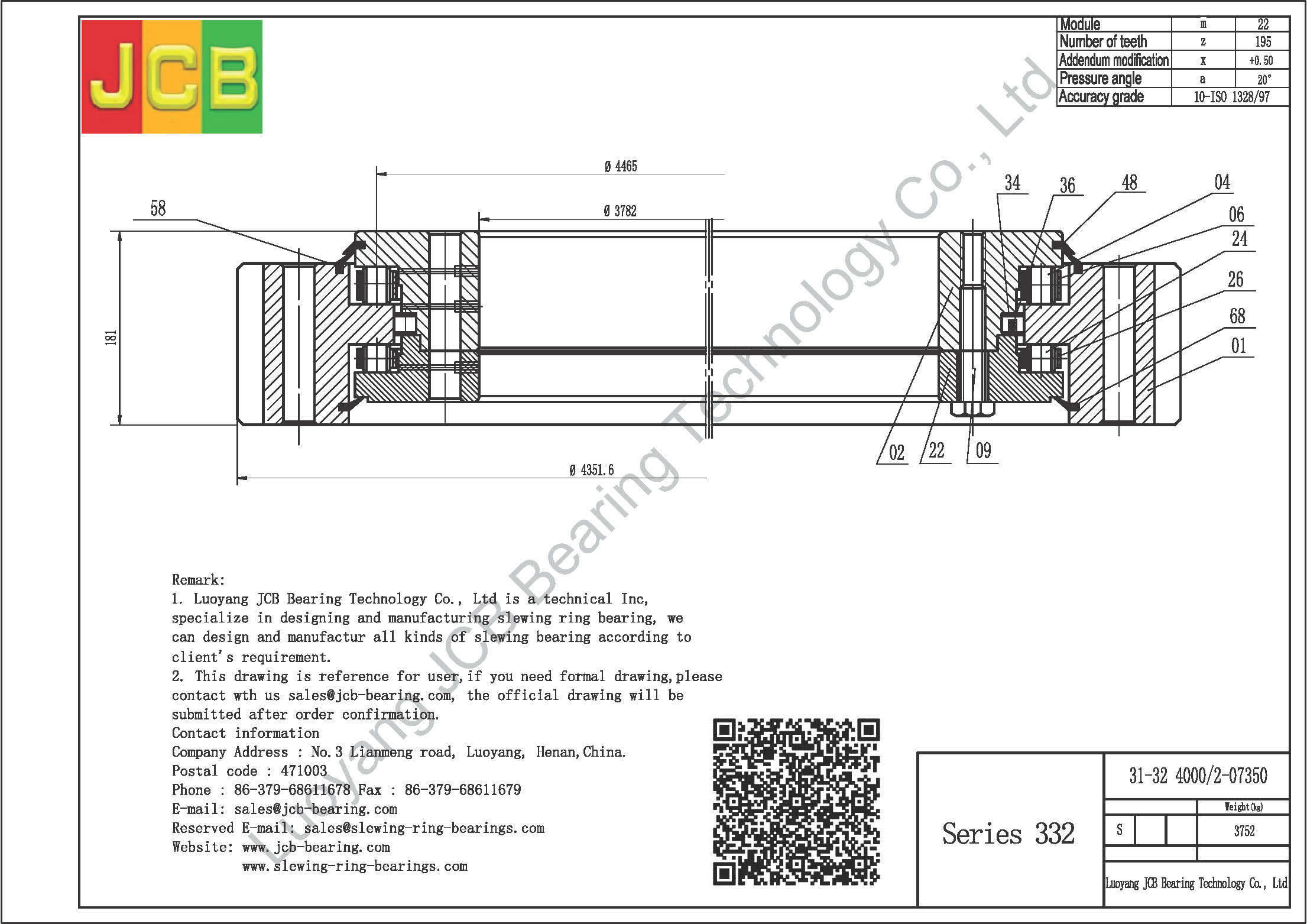

31-32 4000/2-07350 SLEWING BEARING DRAWING
Technical Specification
| Bearing Designations | 31-32 4000/2-07350 | HS Code | 8482109000 |
| Row No. | single row | Inner Diameter | 3782mm |
| Standard | yes | Outer Diameter | 4351.6mm |
| Weight | 3752kg | Total Height | 181mm |
| Structure | ball | Boundary Dimension | 3782mm*4351.6mm*181mm |
| Bearing Material | 50Mn,42CrMo | Number of Tooth | 195 |
| Ball Material | GCr15 | Precision Class | p0 p6 p5 |
| Transport | yes | Seals Type | yes |
| Package | wooden case | Seal Material | Nitrile.Rubber |
| Service | yes | Gear Options | External Gear |
| Application | Shipping Ways | by air/ by sea/ by express | |
| Quality Control | ISO 9001 | Country origin | China |
How to ensure quality of slewing bearing
–Advanced design
–Advanced equipment
–Reliable raw materials
–Perfect management system
–Perfect testing method
