12-50 2240/2-06520 SLEWING BEARING
Bearing Designations : 12-50 2240/2-06520 slewing bearing
We are a professional manufacturer of slewing bearing 12-50 2240/2-06520 rather than sales company of slewing bearing 12-50 2240/2-06520. We not only provide high-quality products, but also provide customers with the most extensive pre-sales and after-sales services, as well as professional technical support.
Contructure Type: Four-contact Ball
Gear Type: Internal Gear
Closure Type: Double Seal
Inner Diameter : 961 mm
Outer Diameter : 2411 mm
Total Height : 109 mm
Weight : 1984 kg

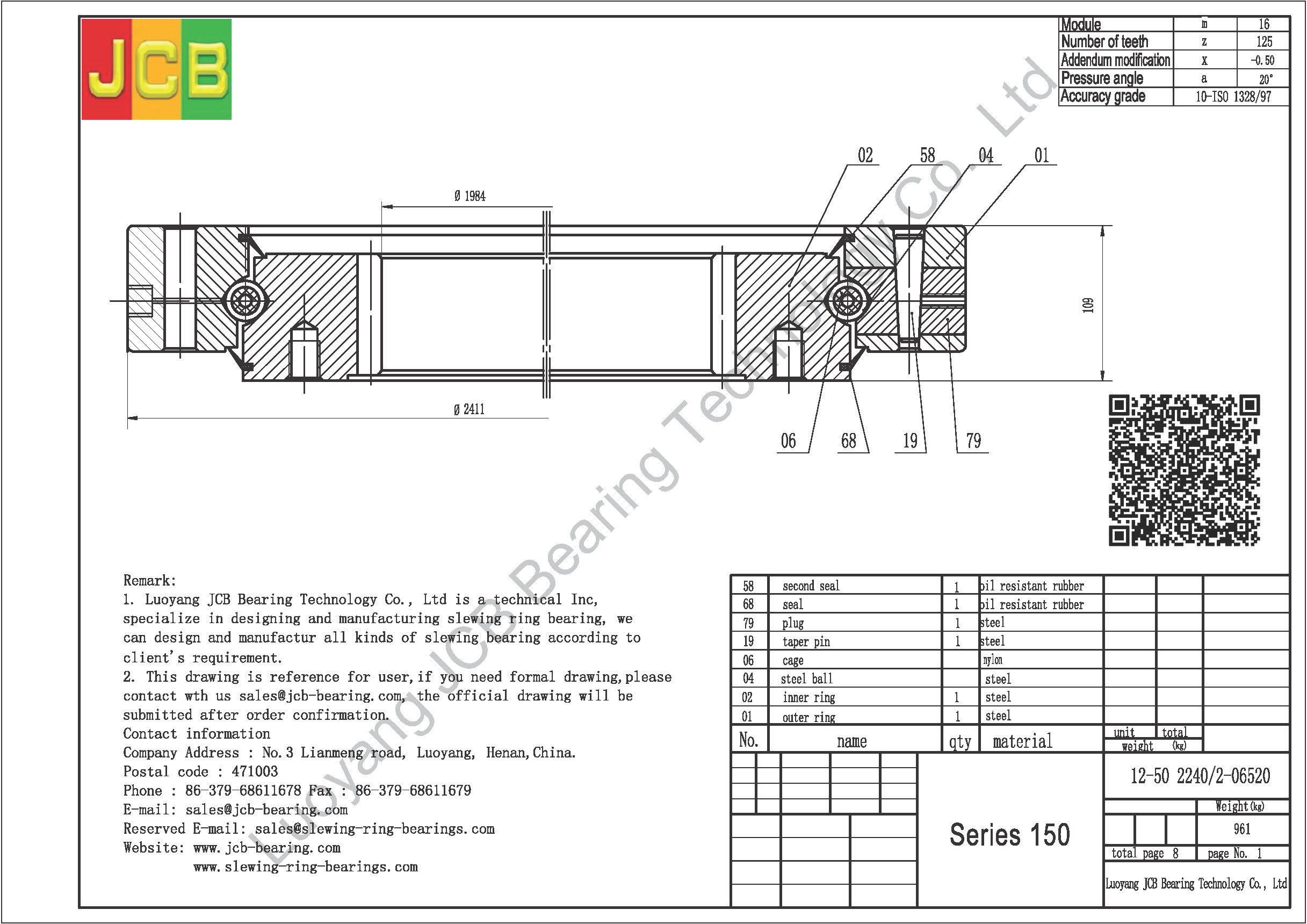

12-50 2240/2-06520 SLEWING BEARING DRAWING
Technical Specification
| Bearing Designations | 12-50 2240/2-06520 |
| Row No. | single row |
| Standard | yes |
| Weight | 1984kg |
| Structure | ball |
| Bearing Material | 50Mn,42CrMo |
| Ball Material | GCr15 |
| Transport | yes |
| Package | wooden case |
| Service | yes |
| Application | – |
| Quality Control | ISO 9001 |
| HS Code | 8482109000 |
| Inner Diameter | 961mm |
| Outer Diameter | 2411mm |
| Total Height | 109mm |
| Boundary Dimension | 961mm*2411mm*109mm |
| Number of Tooth | 125 |
| Precision Class | p0 p6 p5 |
| Seals Type | yes |
| Seal Material | Nitrile.Rubber |
| Gear Options | Internal Gear |
| Shipping Ways | by air/ by sea/ by express |
| Country origin | China |
How to ensure quality of slewing bearing 12-50 2240/2-06520
–Advanced design
–Advanced equipment
–Reliable raw materials
–Perfect management system
–Perfect testing method
About JCB bearing
Introduction:We are Luoyang JCB Bearing Technology Company, working on industry of slewing ring bearing designing and manufacturing more than 30 years, based on this we accumulate a lot of design experiences and slewing ring bearing application experiences
Company motto：We always believe that product quality is the life of enterprise, the enterprise without reliable product quality, that is meaning without social responsibility, it will be eliminated by the market.
Featured products: slewing bearing and slewing drive
Certificate: GB/T 19001-2016(ISO 9001:2015)
