11-20 0941/1-02162 SLEWING BEARING
Bearing Designations : 11-20 0941/1-02162 slewing bearing
We are a professional manufacturer of slewing bearing 11-20 0941/1-02162 rather than sales company of slewing bearing 11-20 0941/1-02162. We not only provide high-quality products, but also provide customers with the most extensive pre-sales and after-sales services, as well as professional technical support.
Contructure Type: Four-contact Ball
Gear Type: External Gear
Closure Type: Double Seal
Inner Diameter : 872 mm
Outer Diameter : 1046.4 mm
Total Height : 56 mm
Weight : 77 kg

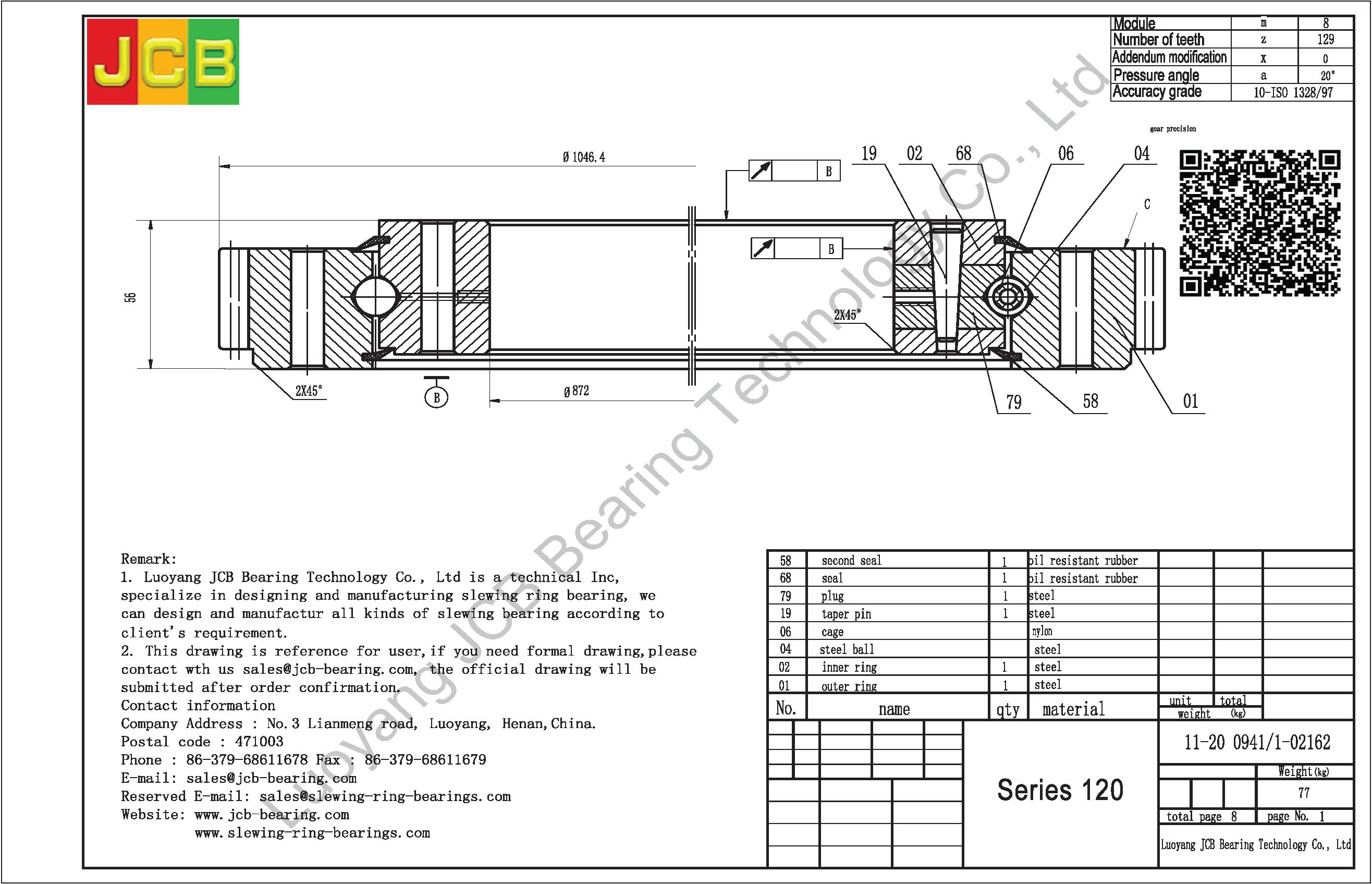

DRAWING OF SLEWING BEARING 11-20 0941/1-02162
Technical Specification
| Bearing Designations | 11-20 0941/1-02162 | HS Code | 8482109000 |
| Row No. | single row | Inner Diameter | 872mm |
| Standard | yes | Outer Diameter | 1046.4mm |
| Weight | 77kg | Total Height | 56mm |
| Structure | ball | Boundary Dimension | 872mm*1046.4mm*56mm |
| Bearing Material | 50Mn,42CrMo | Number of Tooth | 129 |
| Ball Material | GCr15 | Precision Class | p0 p6 p5 |
| Transport | yes | Seals Type | yes |
| Package | wooden case | Seal Material | Nitrile.Rubber |
| Service | yes | Gear Options | External Gear |
| Application | Shipping Ways | by air/ by sea/ by express | |
| Quality Control | ISO 9001 | Country origin | China |
How to ensure quality of slewing bearing
–Advanced design
–Advanced equipment
–Reliable raw materials
–Perfect management system
–Perfect testing method
