10-16 0500/0-08040 SLEWING BEARING

10-16 0500/0-08040 SLEWING BEARING

Contructure Type: Flange Four-contact Ball

Gear Type: Ungeared

Closure Type: Double Seal

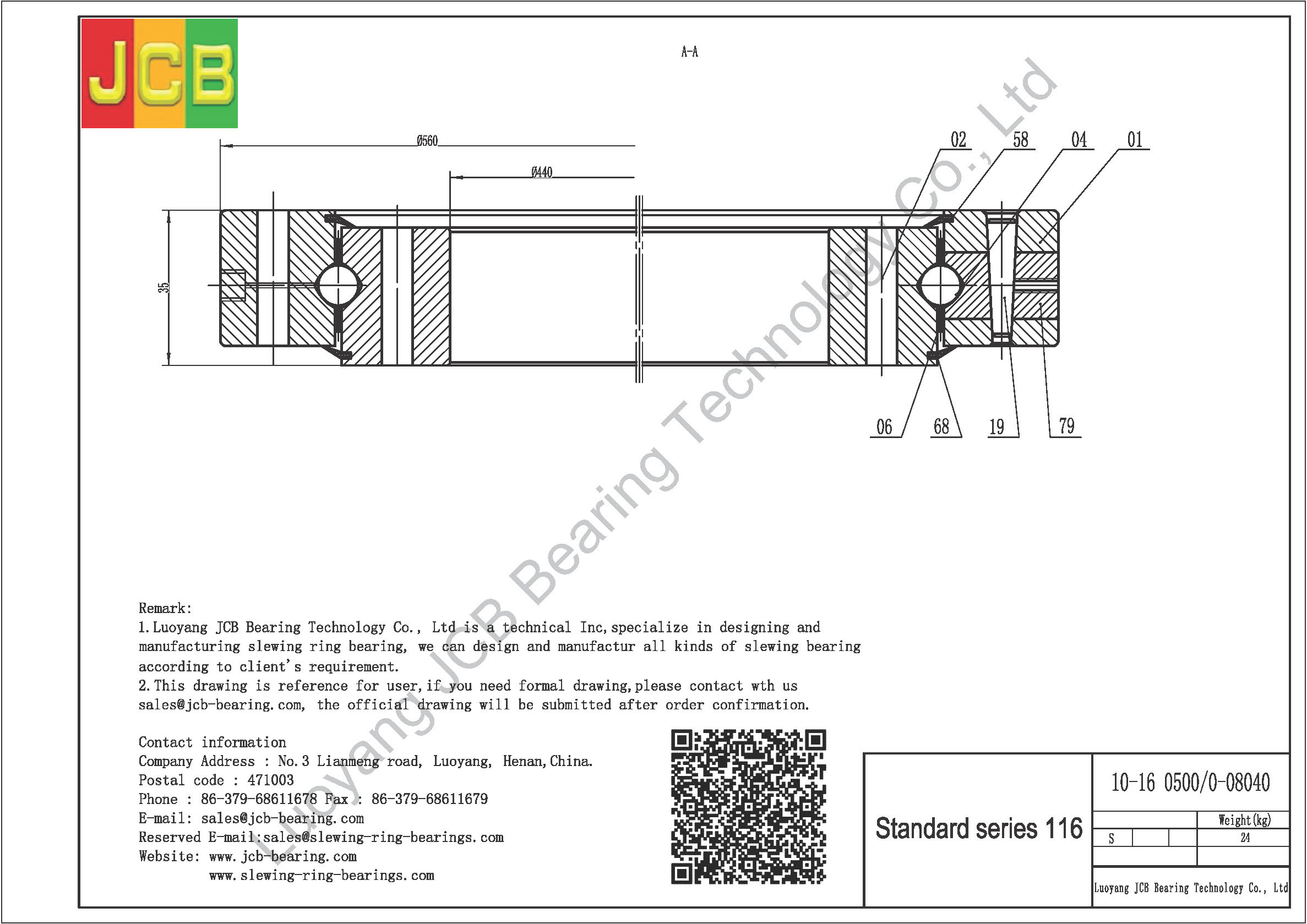

DRAWING OF SLEWING BEARING 10-16 0500/0-08040

* Formal drawing will be submitted after contact with sales@jcb-bearing.com



Technical Specification10-16 0500/0-08040 SLEWING BEARING

Bearing Designations10-16 0500/0-08040HS Code8482109000
Row No.single row
Inner Diameter440mm
Standardyes
Outer Diameter560mm
Weight24kg
Total Height
35mm
Structureball
Boundary Dimension440mm*560mm*35mm
Bearing Material50Mn,42CrMo
Number of Tooth–
Ball MaterialGCr15
Precision Classp0 p6 p5
Transportyes
Seals Typeyes
Packagewooden case
Seal MaterialNitrile.Rubber
ServiceyesGear OptionsUngeared
ApplicationShipping Waysby air/ by sea/ by express
Quality ControlISO 9001Country originChina



Product Photo



Flange Four-contact Ball
